MSA Studies – Net-Inspect

Navigation Path: APQP > MSA Studies

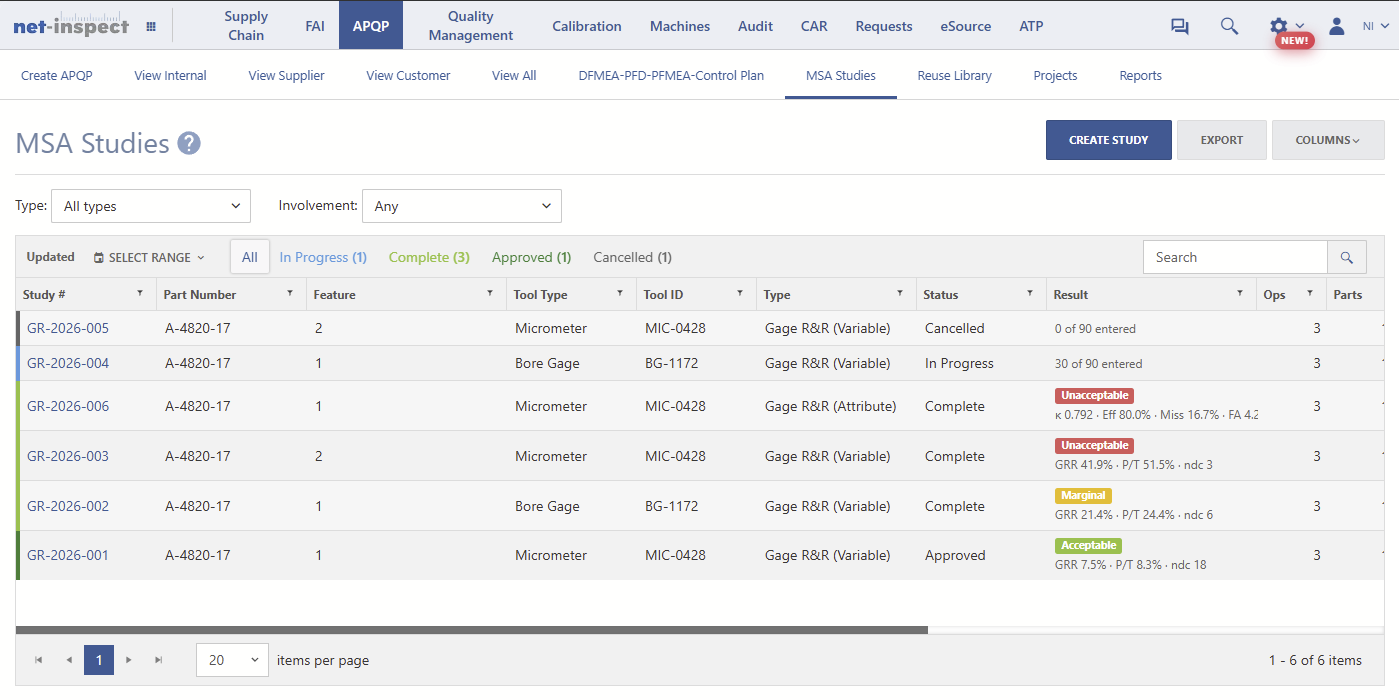

The "MSA Studies" page lists every Measurement System Analysis (Gage R&R) study your company has created. Clicking a study number opens it — a study still being recorded opens on the Record Study Measurements page, and a study that has been calculated, approved or cancelled opens on the Gage R&R Results page.

Page Actions

Create Study
Opens the Start a Gage Study page to plan a new study.

Export
Creates an Excel file of the current list, honoring the filters and columns in effect.

Columns
Use the dropdown to add or remove columns in the table view. The selection is saved for the next visit to the page.

Filtering the List

Two dropdowns sit above the quick filters and narrow the whole list:

Type
Optional. Limits the list to one study type. Options are "All types", "Gage R&R (Variable)" and "Gage R&R (Attribute)".

Involvement
Optional. Limits the list by your relationship to each study. Options are "Any", "Assigned to me" (you are one of the study's appraisers) and "Owned by me" (you are the study owner).

Updated
Optional. Click the date range drop-down menu to select a date range, or to create a custom date range. The range filters on the date each study was last updated.

Quick Filters:

All - All studies within the selected date range.
In Progress - Studies that are still collecting measurements.
Complete - Studies whose results have been calculated but which have not been approved.
Approved - Studies that have been calculated and then approved.
Cancelled - Studies that were cancelled before or after calculation. These cannot be resumed.

Search - Filter the list by study number, part number, tool serial number, tool type or owner.
Filter icon - Filter any specific column.

Columns

Study #
The study's identifier. Click it to open the study.

Part Number
The part the study measures, captured when the study was created.

Feature
The feature (bubble) number on that part.

Tool Type
Type of the measurement tool (gage) used for the study.

Tool ID
Serial number of the measurement tool used for the study.

Type
"Gage R&R (Variable)" for numeric measurements, or "Gage R&R (Attribute)" for pass/fail judgments.

Status
The study's current status. See Study Statuses below.

Result
For a calculated study, the overall verdict badge — Acceptable, Marginal or Unacceptable — with the headline figures beneath it. Variable studies show %GR&R and, when the feature has a tolerance, P/T. Attribute studies show kappa and, when a known reference was recorded, effectiveness, miss rate and false-alarm rate. For a study still in progress, the badge is replaced by a count of measurements entered against the number planned.

Ops
Number of operators (appraisers) in the study plan.

Parts
Number of sample parts in the study plan.

Trials
Number of times each appraiser measures each part.

Operators
The appraisers assigned to the study.

Owner
The Net-Inspect user responsible for the study.

Created
Date the study was created.

Updated
Date the study was last changed. This is the date the "Updated" range filters on.

Study Statuses

In Progress: Measurements are still being recorded.
- The study number opens the Record Study Measurements page. The plan can still be edited and the study can be cancelled.
Complete: All planned measurements were recorded and the results have been calculated.
- The study number opens the Gage R&R Results page. The study can be approved or cancelled.
Approved: The calculated study has been approved.
- Read-only. The study can no longer be approved or cancelled.
Cancelled: The study was cancelled and cannot be resumed.
- Read-only. The reason recorded at cancellation appears on the study's Audit Trail tab.

Access

Only users assigned to the appropriate User Types can see and act on Gage R&R studies.

Supplier Users:

Can view the list of their company's studies
Can create, update and cancel studies with the Calibrator, Setup Administrator or Super Administrator role
Can approve a completed study with the Calibrator, Setup Administrator or Super Administrator role
Can record measurements with the Operator, Calibrator, Setup Administrator or Super Administrator role

Customer Users:

Cannot see this list — it shows only studies belonging to your own company
Can open an individual supplier study read-only when it is linked to an APQP/PPAP checklist item or a Bill of Characteristics they have access to

If you cannot see this page or a role you need is unavailable, contact your setup administrator. See this article to find a setup administrator.

Add to Favorites

To add a custom list page to your dashboard, please see Adding to Favorites.
