Form 3: GD&T Symbols in Excel Template

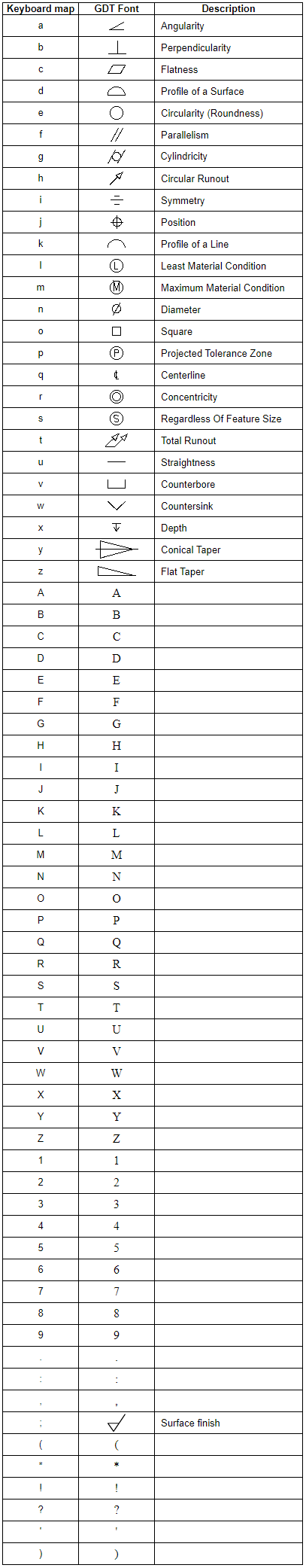

The GDT and Surface finish information on Form 3 of a Excel import template can be entered on a standard keyboard using the mapping information shown below. You must have the gdt_.tff font installed on your local machine for this to work. Submit a helpdesk ticket if you need the font installation file.
The font file for the GD&T symbols is attached below.
