Tool Features

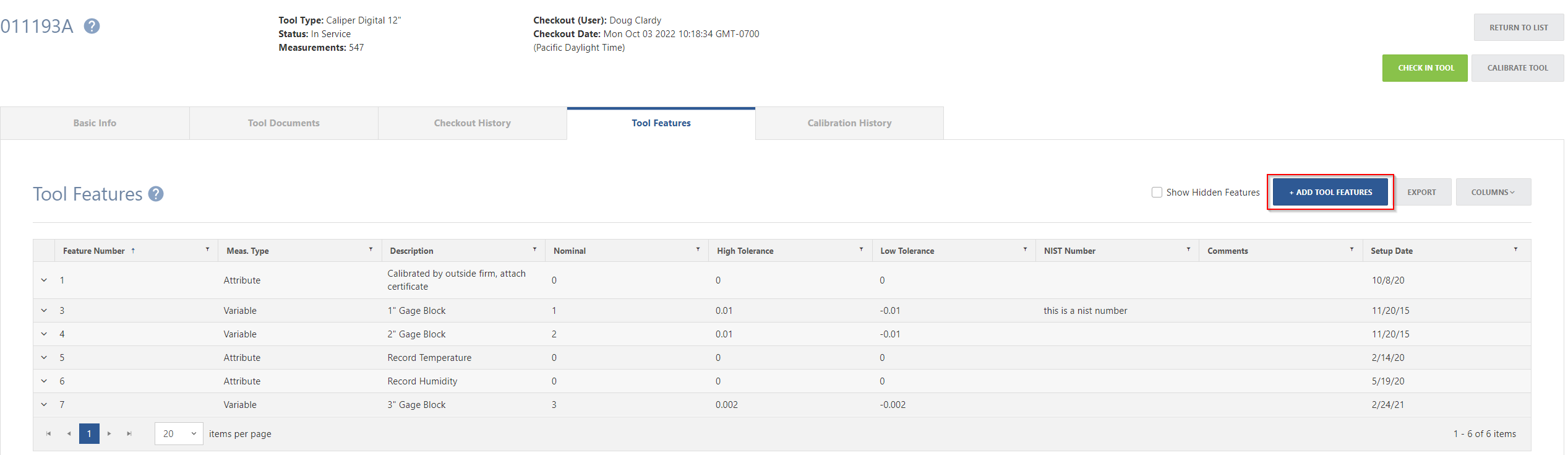

Add tool features by clicking on the "Add Tool Feature" button located in the upper right of the screen.

Feature Number	The feature number must be a numeric value. Required.
Measurement Type	Identifies the measurement type. Can be modified if no measurements have been taken on the feature.
Feature Description	Description of the tool feature
Nominal	Nominal tolerance of the feature. Can be modified if no measurements have been taken on the feature.
High Tolerance	Upper tolerance of the feature. Must be zero or a positive value. Can be modified if no measurements have been taken on the feature.
Low Tolerance	Lower tolerance of the feature. Must be zero or a negative value. Can be modified if no measurements have been taken on the feature
NIST Number	NIST test report number
Comments	Additional comments on the tool feature.
Setup Date	Date the feature was created


Edit a Tool Feature

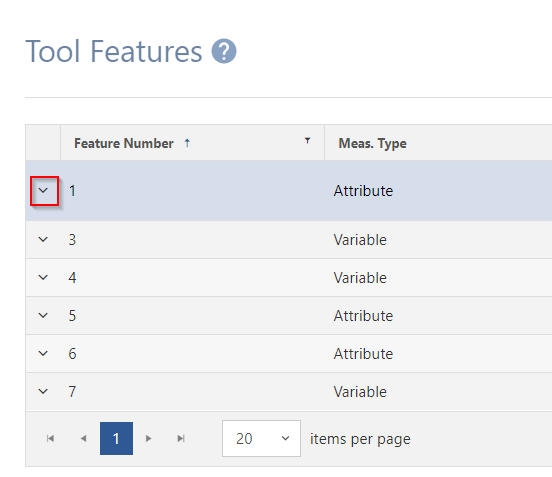

1. Click the "?" to the left of a feature to edit an existing feature.

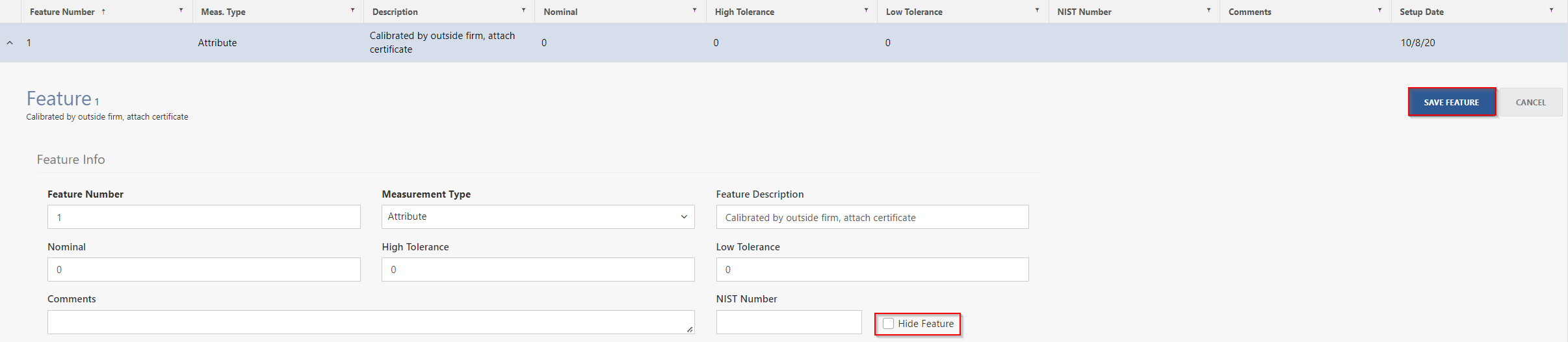

2. Selecting "Hide Feature" will remove the feature.

3. Be sure to click "Save Feature" to save your changes.
