Adding Feature Photo

Adding Feature Photos:

To add Part Feature Photos to a part feature, first navigate to the Part Record in one of two ways:

1. Select Quality Management > Part & Feature Setup > Navigate and open the part.

OR

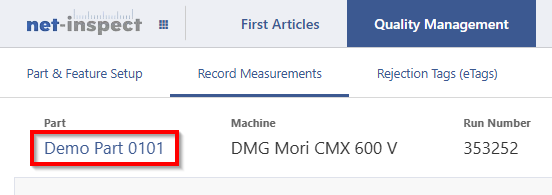

2. From a Measurement Run select the hyperlink for the part in the upper left corner:





In the part record:

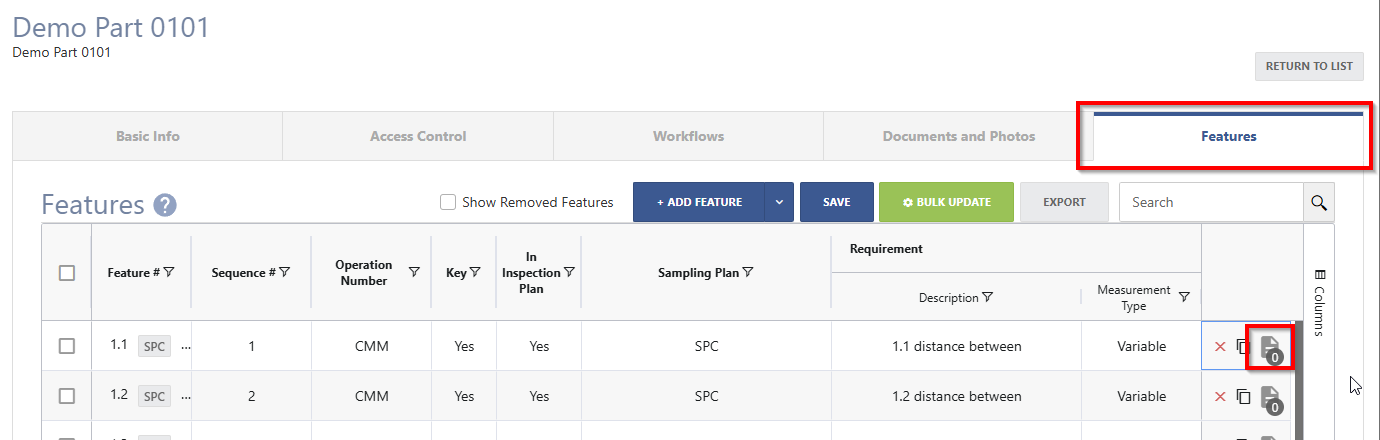

1. Go to the Features tab

2. Click on the document icon in the right-hand side of the Feature # row where you'd like to add your Feature Photo

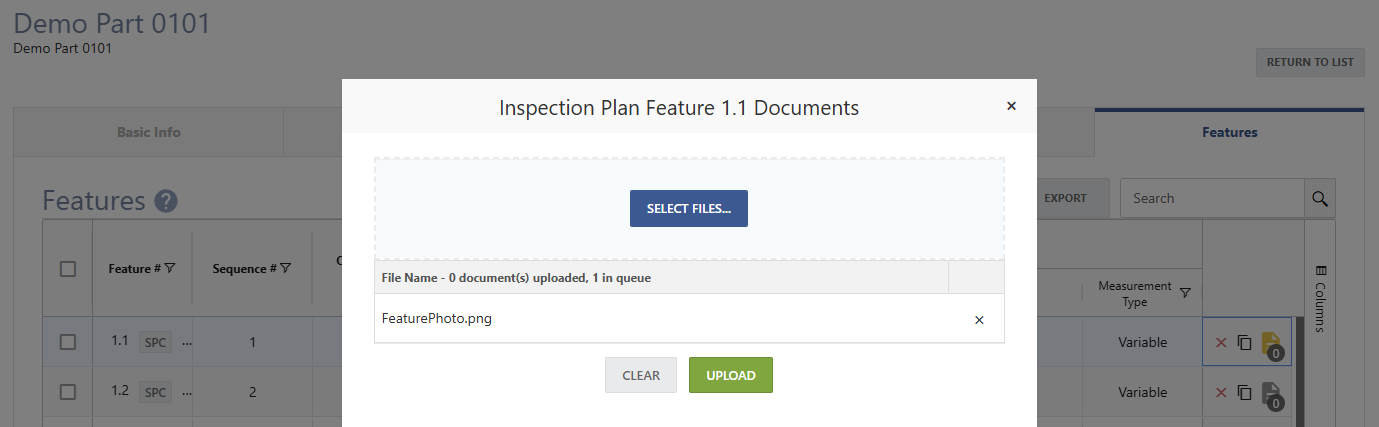

3. Drag and drop OR select a file from your local disk drive > Upload



Alternatively,

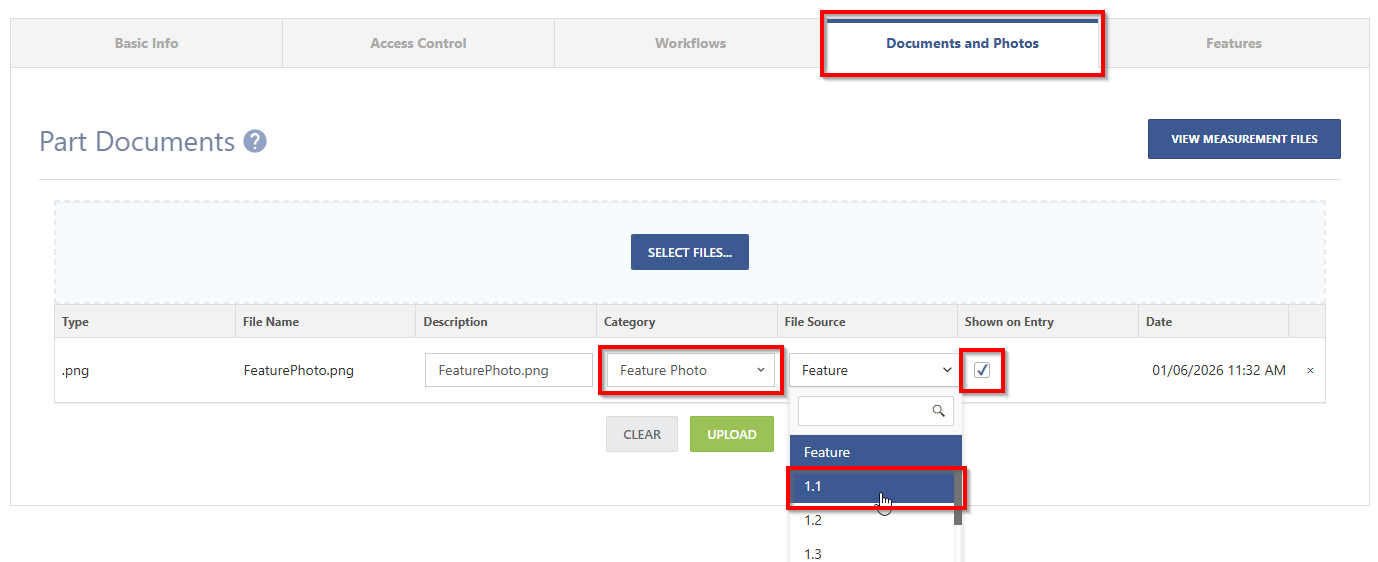

1. Go to the Documents and Photos tab

2. Drag and drop a feature photo OR select a file from your local disk drive

3. In the Upload Queue, select "Feature Photo" from the Category dropdown

4. Select the Feature Number the feature photo will be associated with

5. Check "Show on Entry"

6. Upload

Viewing Part Feature Photos:

1. In the Measurements Entries list view, Features with photos are indicated with a camera icon

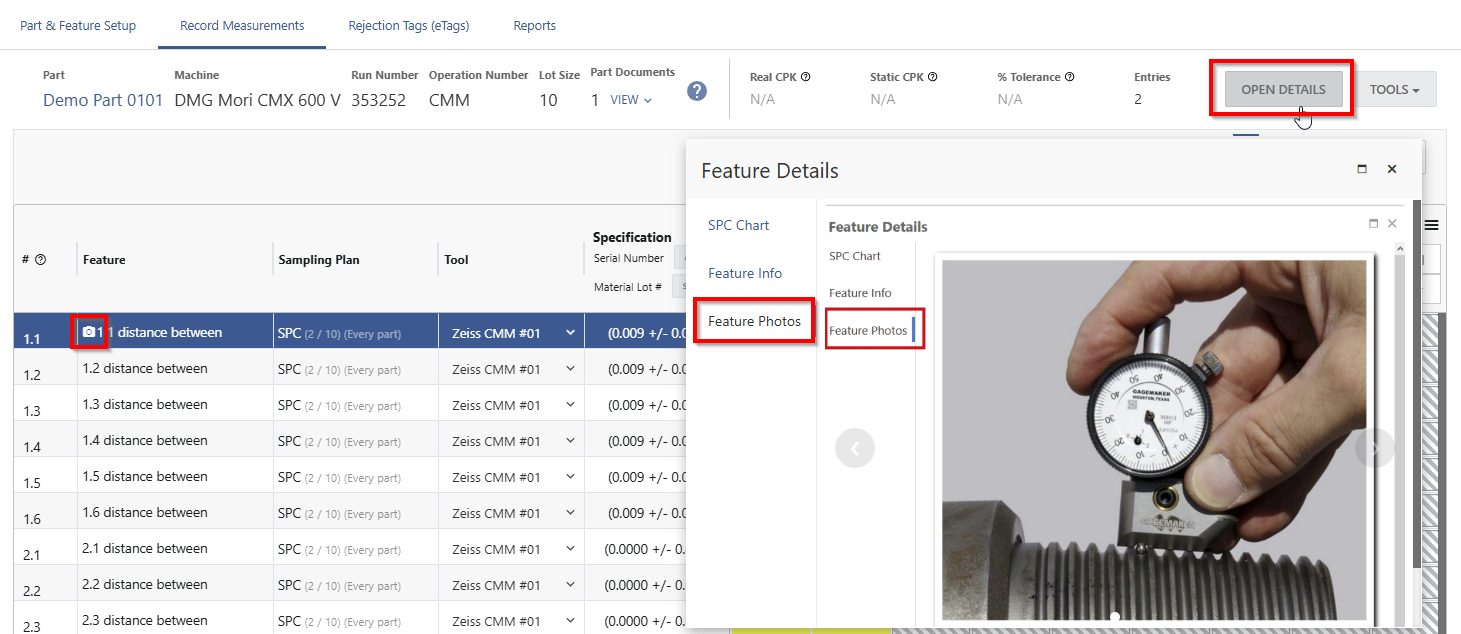

   If you have a Part Feature Photo associated with the part feature, they are available for viewing by clicking on the feature row > OPEN DETAILS button > Feature Photos:
