Record Measurements

Quality Management > Record Measurements

Two options are available in the Record Measurements screen, "Start a new run" and "Resume an existing run"

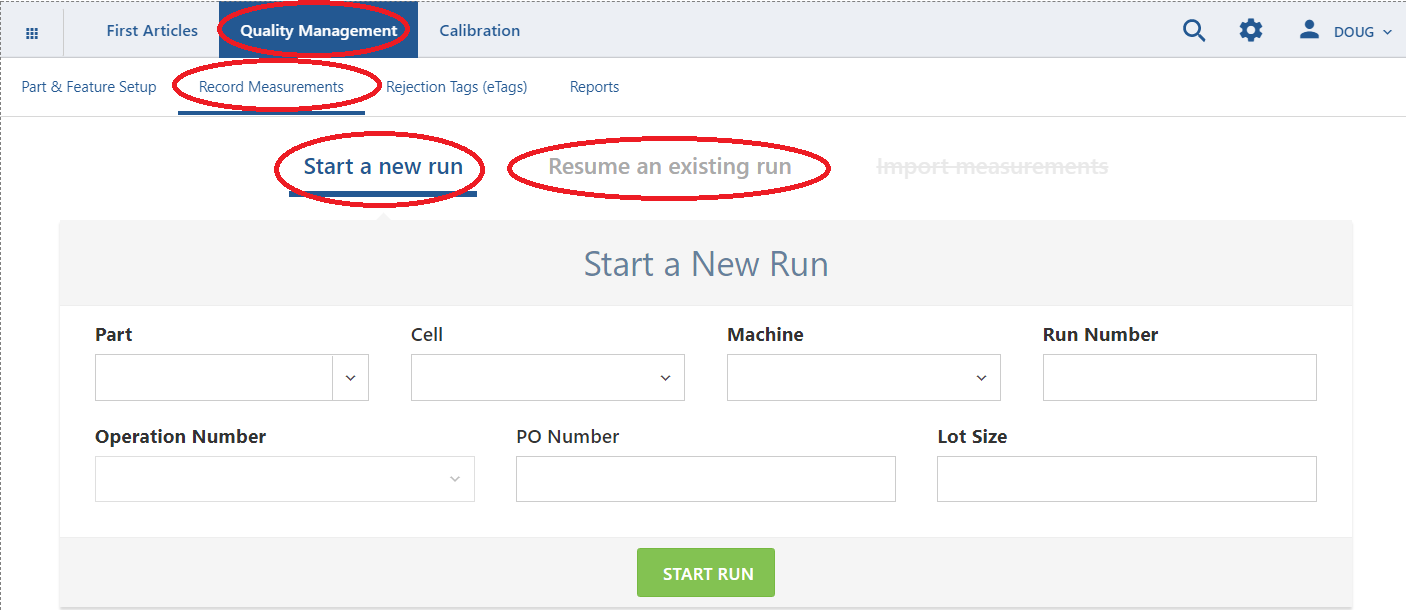

Start a new run

Part	Use the dropdown to select an existing part. See add a part to add new parts
Cell/Location	Cell or location on the shop floor where the selected operation occurs. (See company preferences to add new cells)
Machine	Machine used to manufacture the part. Machines can be added via the Add a Machine page.
Run Number	Type in unique designator for run (Lot #, Job #, etc.).
Operation Number	Operation number to be measured. Leave default value (0) if you wish to view all part features.
PO Number	Type in the Customer P.O. # (Optional). Multiple PO numbers should be separated with commas.
Lot Size	Type the lot size listed on the MO (Manufacturing Operation) (not the actual quantity of parts at your workstation). MO lot size is used to determine number of parts to be sampled based on sampling plan selected in the inspection plan for each feature.
Serialized	If the part is serialized, an additional field will populate. Fill in a base serial number and choose whether the serial number should automatically increment.

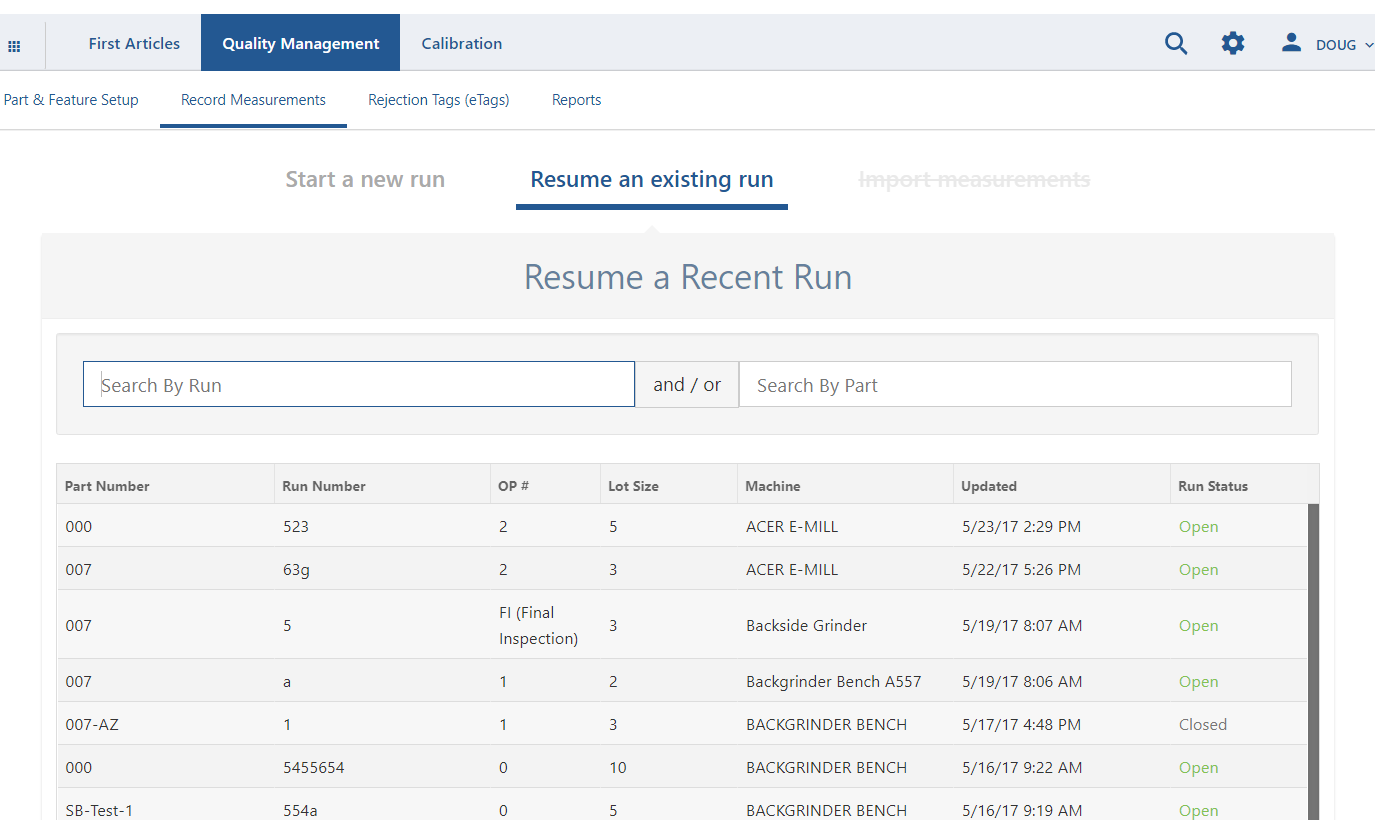

Resume an existing run

​​Search for an existing run by run number or part number.

​Select an existing run to continue measurements. Note: Runs started in version 4 of Net-Inspect cannot be resumed in version 5.



​​To learn about measurement entry, navigate to our measurement entry page.
