PPAPD/ Reuse Library: DFMEA
A PPAP Deliverables (PPAPD) or Reuse Library record "DFMEA" tab contains the header/ meta data and table for the deliverable DFMEA (Design Failure Mode Effects Analysis).
- To read more about the functioning of the data table, please read this article: PPAPD/ Reuse Library: Data Table.
- To understand the header portion of the DFMEA tab, please read this article: PPAP Deliverables: Deliverable Tab Header Info and Button Actions.
- Click here to reference S/O/D Tables (found below).
- For specific information regarding the requirements column, please read this article: PPAPD/ Reuse Library: Requirements Column

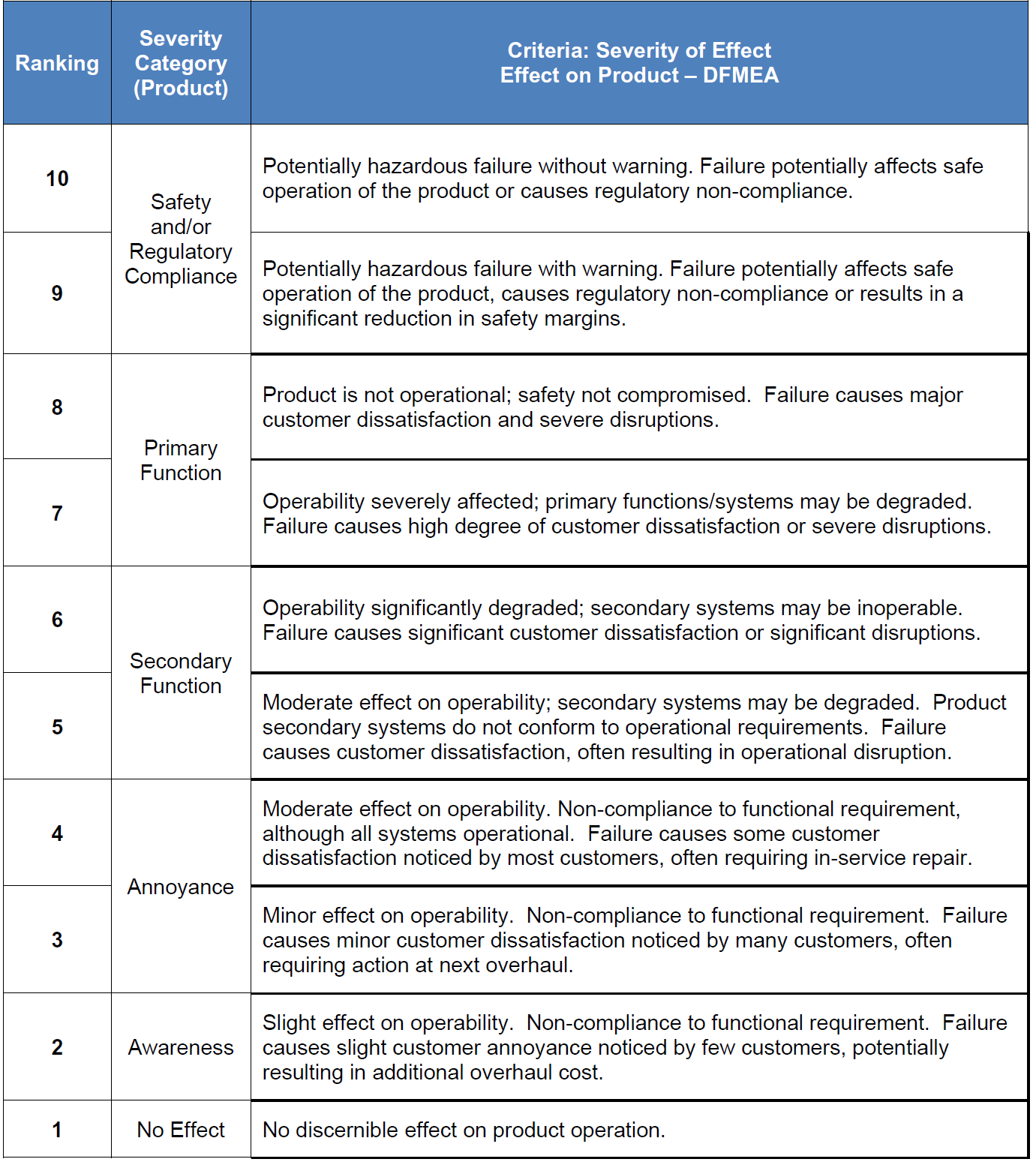

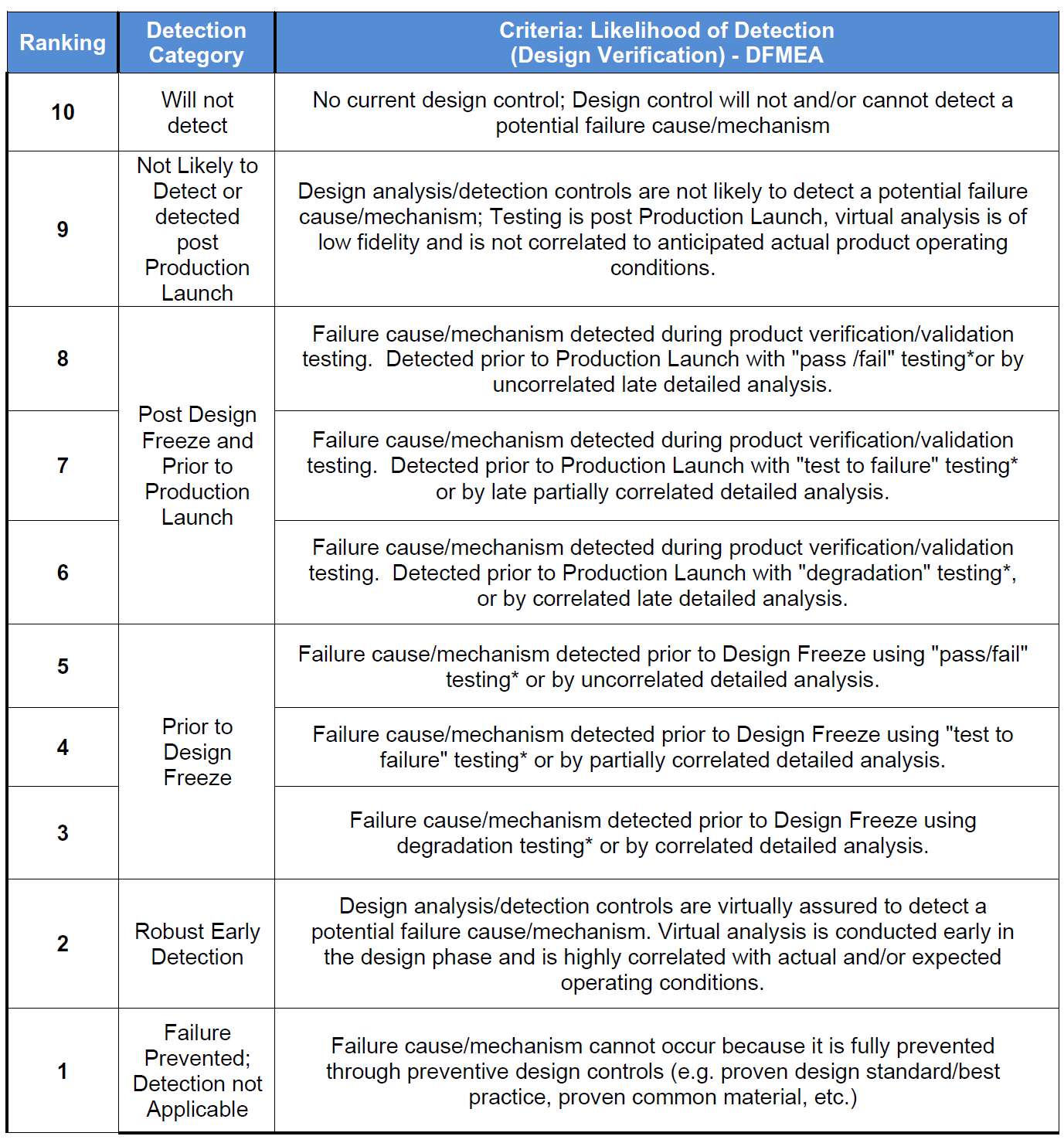

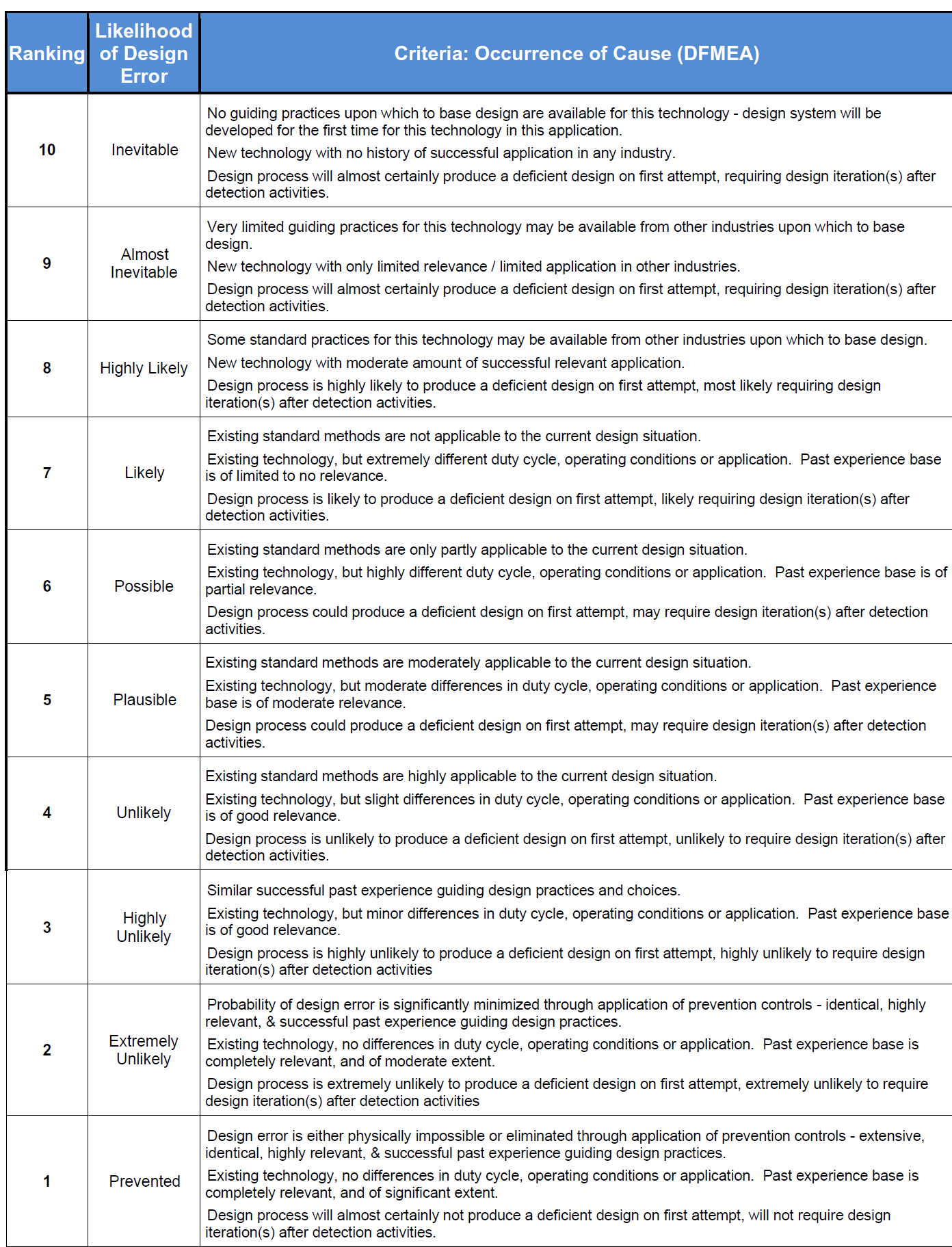

Net-Inspect's PPAP Deliverables/ Reuse Library are based on RM13004. Below are excerpts from the reference manual regarding scoring for SEV, OCC, and DET columns.
The "Action Priority" column is based on RM13004 but the table itself is referencing H/M/L values from AIAG/VDA due to customer feedback. You can find the full table within the application (click "Columns" on the right side of the grid, check mark "AP", then on the column itself click the question mark to open the modal").
Below are the differences between RM13004 and AIAG AP values:
Product or plant effect Very High >> Low >> Low - Very Low>> H (instead of L)
Product or plant effect Very High >> Low >> Moderate >> M (instead of L)
Product or Plant Effect Low >> Very High >> Low - Very Low >> M (instead of L)
Product or Plant Effect Low >> Very High >> Moderate >> M (instead of L)
Please reference the manual for the most up to date scoring recommendations and communicate with your customer or team to ensure the correct tables are being used.
